1. Compatible with MgcSTEM brand PWM controllers, plug and play without wiring modification
2. Stepless variable speed delivers smooth start, speed responds to pedal pressure precisely
3. Durable non-slip pedal surface for safe, stable operation

• This variable speed pedal is firm and durable, using Hall device to collect pedal angle position without contact;
• The output range is wide, the pedal position angle change range is 0~30 degrees, and the corresponding output voltage is 1V~4V;

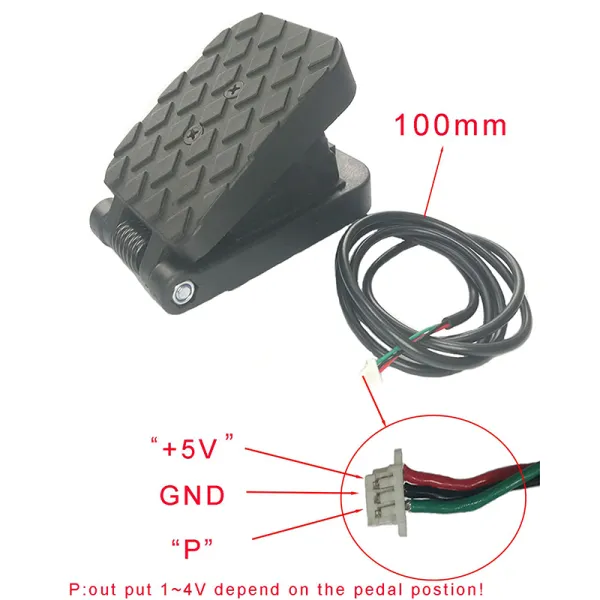

• The length of the pedal signal line is 1 meter, using the sh1.0-3 interface, the red is +5V input, the black is GND, and the other color is the output voltage signal (1~4v);
• The physical interface and electrical interface of this pedal have been optimized for compatibility and matching with the pwm module (2.0A/2.0B) we sell on amazon, and can be directly used together to achieve variable speed control.
• When this pedal is connected to pwm 2.0B, please make sure to re-power on the pwm module to ensure that the pwm module recognizes the pedal. (The pwm module only detects if a variable speed pedal is plugged in every time it is powered on)

For PWM 2.0A Module

For PWM 2.0B Module
