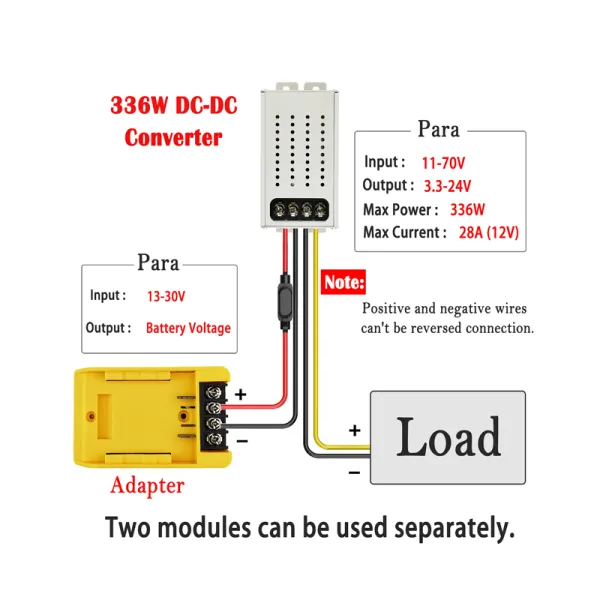

1. Dual separate modules: Dewalt Battery Adapter + 48V-12V Buck Converter, work together for Power Wheels upgrade.
2. 11-70V wide input, 28A 336W stable 12V output for modified ride-on toys.
3. Dual modules usable separately: adapter for Dewalt 18V/20V batteries, converter for other 11-70V battery setups.

• This 20v to 12v adapter compatible with DeWalt batteries, featuring low voltage protection；dc to dc converter support 11–70V DC input; adjustable DC output voltage range: 3.3–24V DC; maximum power: 336W (12V, 28A); Supports an external zero-power consumption switch.
• This 20v to 12v step down converter LED screen can display input or output voltage; automatic screen-off after 3 minutes.
• This 20v to 12v converter has automatic overcurrent protection, overheating protection, and short-circuit protection.
• 12v battery adapter Works with compatible DeWalt batteries to quickly upgrade stock Power Wheels.
• Suitable for power wheels, car audio systems, heavy-duty trucks, LED lights, advertising screens, monitoring systems, motors, solar panels, laboratories, experimental projects, electronic systems, DIY projects, etc.

20V/18V to 12V Step Down Converter Compatible with Dewalt 20V batteries

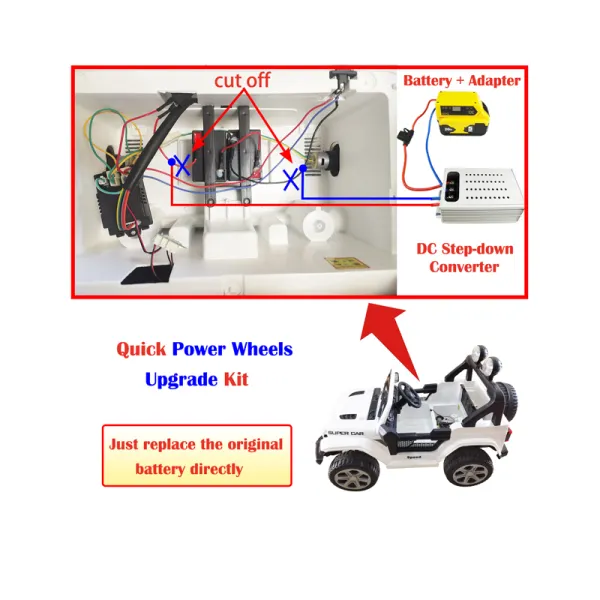

Power Wheels Connection Diagram

Warning：

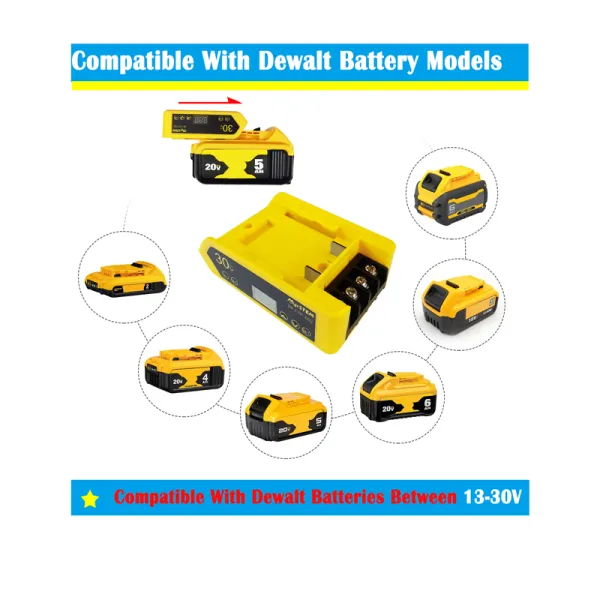

● The battery adapter is compatible with DeWalt batteries between 13–30V. Overvoltage will damage the module.

● Adapter: input = output. Step-down regulator: output 2V lower than input.

● Always connect the positive and negative poles correctly to avoid burning out the device.

● The device is not waterproof; keep it away from water and moisture.

● The step-down regulator has no built-in fan. Slight heating is normal. Add a cooling fan for long high-power use.

Buck Converter & Adapter Introduction Video

Buck Converter User Guide Video

Adapter User Guide Video

Product Details & Introduction

DC 20V/18v to 12V Step-Down Converterwith Switch, Over-discharge Protection

It is suitable for golf carts, car audio systems, heavy-duty trucks, LED lights, advertising screens, monitoring systems, motors, solar panels, laboratories, experimental projects, electronic systems, DIY projects and more.

FQA

1、Q: Why is there no response when turning the potentiometer?
      A:When the voltage difference between input and output is less than 2V, turn the potentiometer clockwise repeatedly until you hear a slight click or the screen data changes

2、Q: Which batteries is it compatible with?
      A: The adapter works with DeWalt 18V/20V batteries. The step-down regulator supports 11–70V batteries.

3、Q: Can the output voltage be higher than the input voltage?
      A: No. The adapter has the same input and output voltage. The step-down regulator output must be at least 2V lower than the input. The adapter has electronic switch, low-voltage protection, voltage display, and extra output ports.

4、Q: Is it normal for the module to get warm during use?
      A: Yes. The module is compact with no built-in fan; it uses an external aluminum housing for heat dissipation. Slight heating under high power is normal. For high-power or full-load operation, an external cooling fan is recommended.

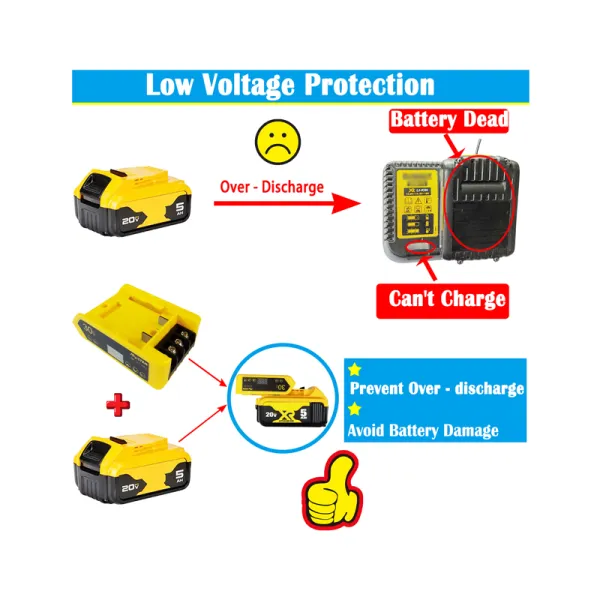

5、Q: Why does it shut off quickly even if voltage shows full?
      A: You need to set the low-voltage protection threshold correctly. As batteries age, their voltage drops rapidly under load to below the CL value, triggering shutdown. If this happens, lower the CH and CL settings.
