This DeWalt 30-12V battery adapter for Power Wheels delivers dual voltage output, with both raw battery voltage and a stable 12V fixed port. It includes low voltage protection to prevent deep discharge, real-time voltage monitoring, and detachable multi-terminal output. Fully compatible with DeWalt 13V to 30V batteries, it’s the ideal pick for Power Wheels upgrade builds.

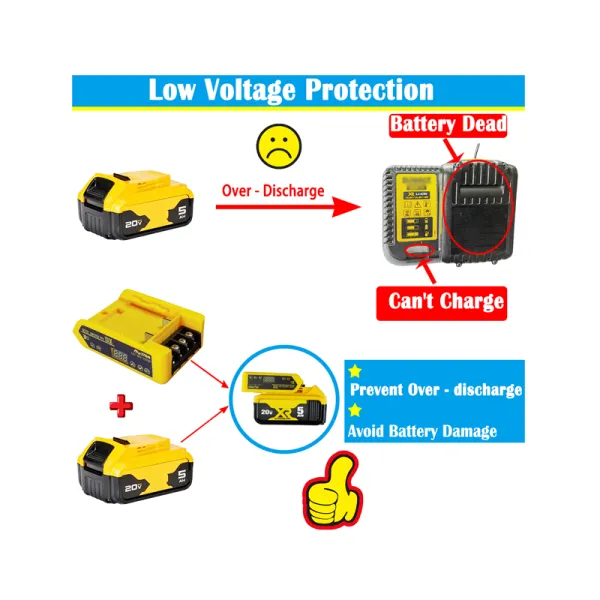

• Low Voltage Protection: It comes with an adjustable low-voltage protection feature to prevent the battery from over-discharging. It is perfectly compatible with Dewalt 20V batteries and can be used with Dewalt batteries ranging from 12V to 30V
• 12V DC-DC: It also has the function of stepping down the battery voltage to 12V at 2.5A simultaneously. It can be used for the lighting of power wheels, speakers, and other systems that require a 12V voltage
• Real - time Voltage Monitoring: It can detect the real - time voltage of the battery and display it via an LED, enabling you to better keep track of the battery level information
• Electronic Switch: It is internally integrated with an electronic switch, which can be set to turn on or off according to the preset voltage or by pressing a button
• Detachable Multi - terminal Output: It offers 2 detachable terminal outputs, allowing for more flexible configuration in series, parallel and other applications

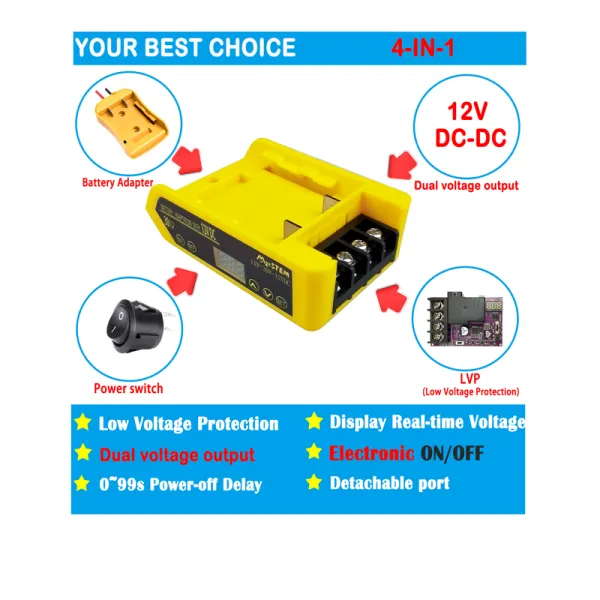

New Generation Multi-Functional Battery Adapter

Important Note: This adapter is intended for use with DeWalt 18V/20V batteries. It features two output channels: one delivers battery voltage output, and the other is a 12V DC-DC output. The 12V channel only supports a maximum current of 2.5A.

Here are the detailed pictures of all sides of the product, which will help you better understand and get to know our product

THE DISPLAY OF APPLICATION SCENARIOS IS AS FOLLOWS

 Product Instruction Videos：

Warning：

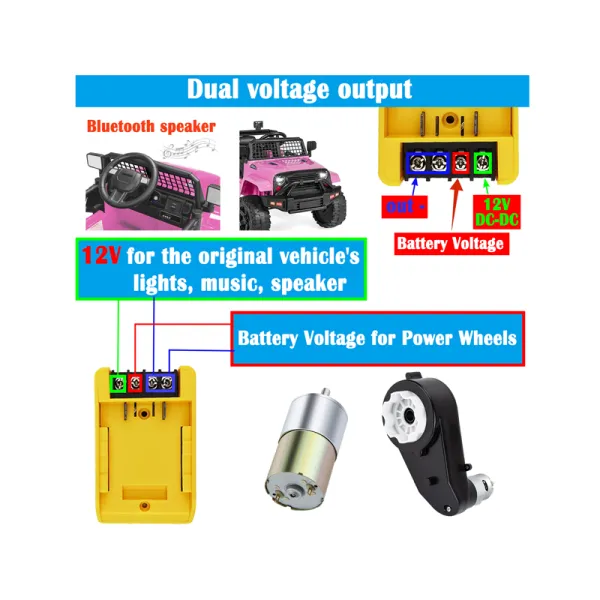

• This adapter has two output channels. One output has the same voltage as the battery, and the other output is 12 volts. When using it, please connect to the ports correctly.

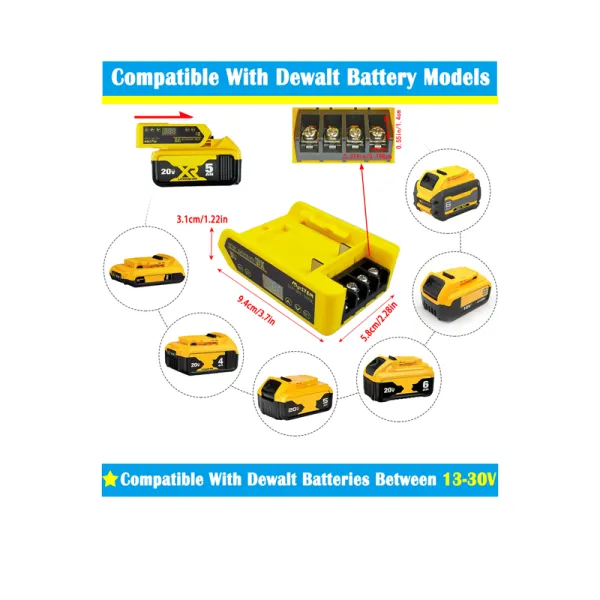

• This battery adapter is suitable for Dewalt batteries with a voltage range of 12-30V. Batteries with a voltage exceeding 30V will damage the battery adapter
• The positive and negative poles must be connected correctly. Please do not cause a short circuit.
• This battery adapter should not be exposed to water.

FQA

Q: Can the output voltage be changed?
A: his adapter has two output channels. One output has the same voltage as the battery, and the other output is 12 volts.When using it, please correctly connect to the corresponding ports to avoid damage.

Q: What types of batteries are applicable?
A: This battery adapter is compatible with Dewalt series batteries ranging from 13V to 30V.

Q: Voltage above low - voltage threshold, but shuts off soon after startup. Why?
A: Due to battery aging, when the load starts, the starting current is generally large, causing the battery voltage to drop significantly, thus triggering the low - voltage protection. please refer to the instruction manual or the video.

Q: Will the module consume battery power after it is turned off?
A: No, the battery consumption is 0 after it is turned off. The battery itself has a self - discharge phenomenon. When it is not used for several months, it still needs to be removed and charged in a timely manner to avoid a reduction in battery life.
