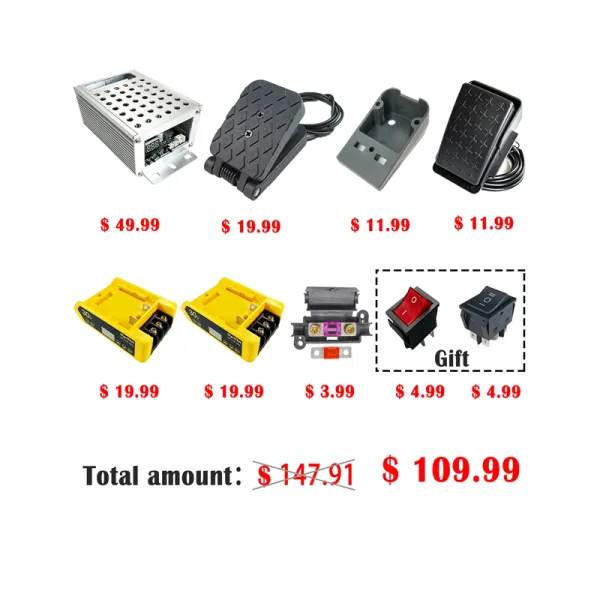

PWM3.0 Controller & Adapter Combo Kit, Perfect for Power Wheels Upgrade Mods | MgcSTEM

$109.99 $147.91

In Stock

MgcSTEM 13-77.5V 120A PWM3.0 Motor Controller

SKU Code: PW-M30-012
Model: PW-M30-012
Categories: PWM DC Motor Speed Control
Brand: MgcSTEM

Add to Wish List

13-77.5V 120A PWM3.0 Brushed DC Motor Speed Controller, Soft Start, Electronic Brake, Stepless Speed, Auto Overcurrent Protection, Built-in Cooling Fan, 12V 2.5A Output Port, Fault Indicator Light, Voltage Display & Low Voltage Cutoff for Power Wheels | MgcSTEM

Specifications

● Operating Voltage Range: 13 VDC ~ 77.5 VDC

● Max Peak Current: 120A

● Max Continuous Operating Current: 65A @ 24V

● Braking System: Integrated electronic brake

● 12V Auxiliary Output Port: 2.5 A (Automatic shutdown protection upon overload)

● Adjustable Soft Start Time: 0.1 ~ 30 seconds

● Adjustable Soft Stop Time: 0.1 ~ 30 seconds

● Variable Speed Pedal Input: Pin P of speed pedal port; 1.0 V ~ 4.0 V corresponds to 0% ~ 100% PWM duty cycle

● Soft Stop Pedal Input Pin: 0 V / 5 V (Pin S of soft stop pedal; 5 V input triggers soft stop)

● Duty Cycle Adjustment Range: 0% ~ 100%

● Battery Voltage Detection Range: 13 ~ 77.5 V (Accuracy: ±0.1 V)

● Low-Voltage Protection Threshold: 13 V ~ 77.5 V (Factory default: 13 V)

● PWM Operating Frequency: ~17 kHz

● Enclosure Dimensions: 15.6 cm × 7 cm × 4.6 cm

Three Configuration Options & Specifications

Table of three configurations.webp

Single Brake Pedal Mode

Single‑switch pedal mode.webp

Single Variable Speed Pedal Mode

Single‑speed‑change pedal mode.webp

Variable Speed Pedal + Brake Pedal Mode

Dual‑pedal mode.webp

Instruction Video
Upgrade Principle : 00:11‑04:16
Hands‑on Upgrade : 04:17‑12:30
PWM Settings : 12:31‑18:38
Adapter Settings : 18:39‑23:02
