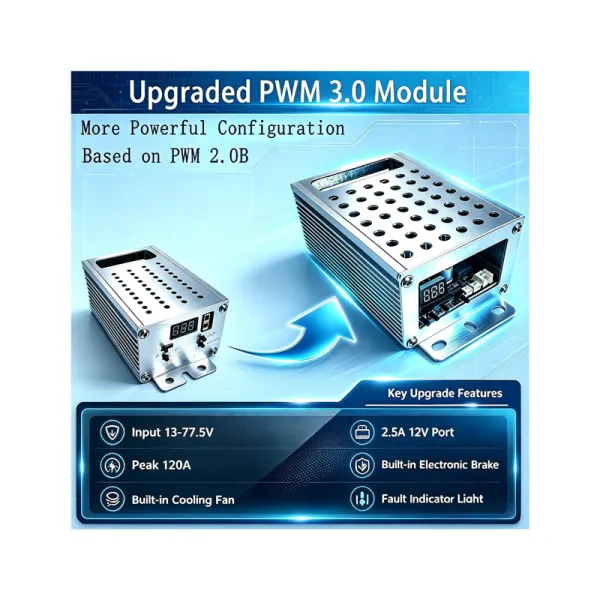

13-77.5V 120A PWM3.0 Brushed DC Motor Speed Controller, Soft Start, Electronic Brake, Stepless Speed, Auto Overcurrent Protection, Built-in Cooling Fan, 12V 2.5A Output Port, Fault Indicator Light, Voltage Display & Low Voltage Cutoff for Power Wheels | MgcSTEM

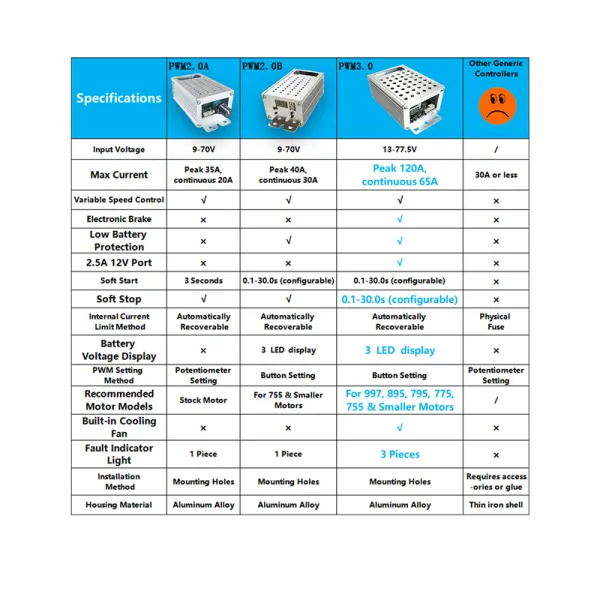

● Operating Voltage Range: 13 VDC ~ 77.5 VDC
● Max Peak Current: 120A
● Max Continuous Operating Current: 65A @ 24V
● Braking System: Integrated electronic brake
● 12V Auxiliary Output Port: 2.5 A (Automatic shutdown protection upon overload)
● Adjustable Soft Start Time: 0.1 ~ 30 seconds
● Adjustable Soft Stop Time: 0.1 ~ 30 seconds

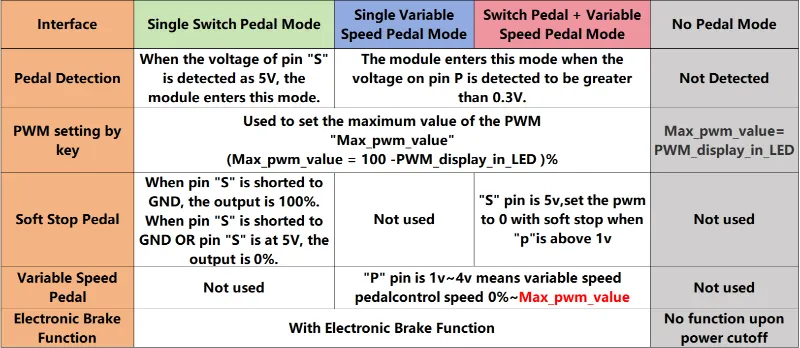

● Variable Speed Pedal Input: Pin P of speed pedal port; 1.0 V ~ 4.0 V corresponds to 0% ~ 100% PWM duty cycle
● Soft Stop Pedal Input Pin: 0 V / 5 V (Pin S of soft stop pedal; 5 V input triggers soft stop)
● Duty Cycle Adjustment Range: 0% ~ 100%
● Battery Voltage Detection Range: 13 ~ 77.5 V (Accuracy: ±0.1 V)
● Low-Voltage Protection Threshold: 13 V ~ 77.5 V (Factory default: 13 V)
● PWM Operating Frequency: ~17 kHz

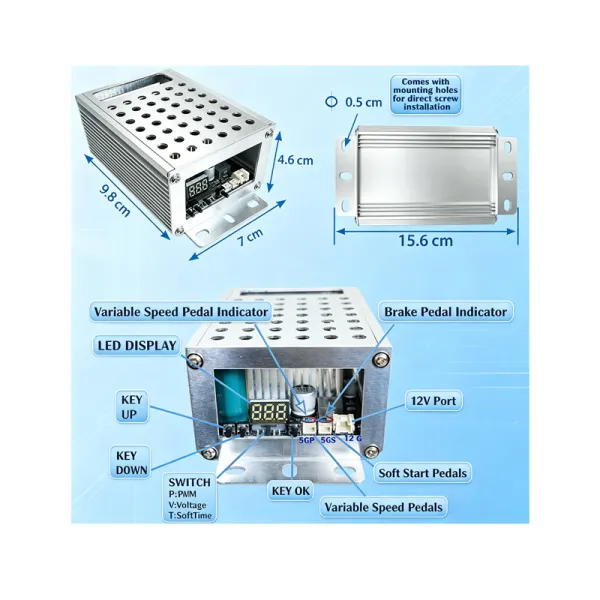

● Enclosure Dimensions: 15.6 cm × 7 cm × 4.6 cm
Instruction Video
Upgrade Principle : 00:11‑04:16
Hands‑on Upgrade : 04:17‑12:30
PWM Settings : 12:31‑18:38
Adapter Settings : 18:39‑23:02

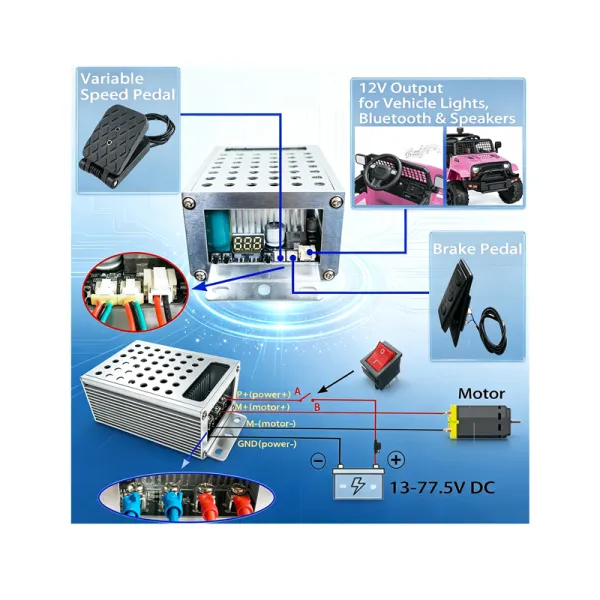

Control Panel Terminal Diagram
